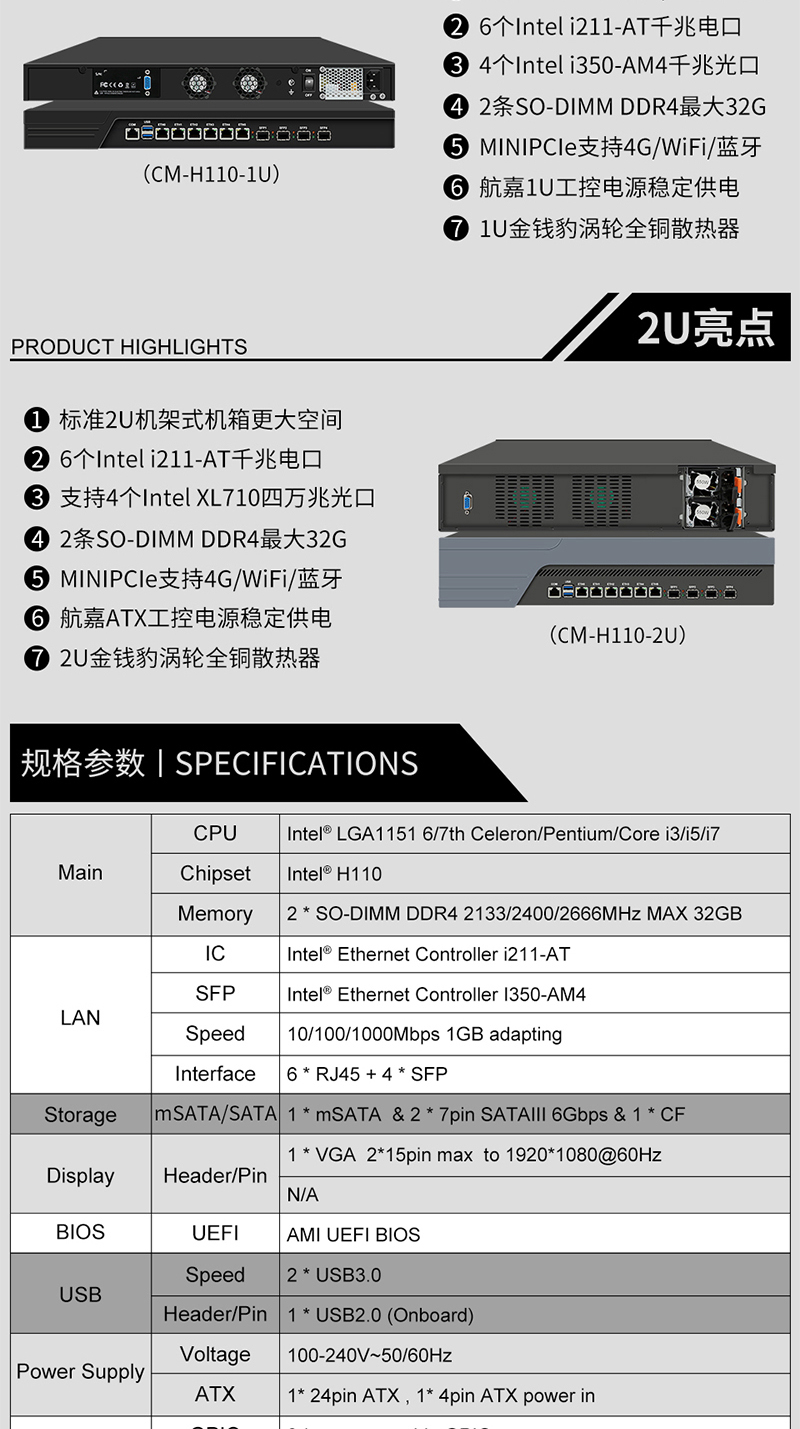

| CPU | |IntelLGA1151 6/7th Celeron/Pentium/Core i3/i5/i7 |
| Chipset | |Intel®H110 |

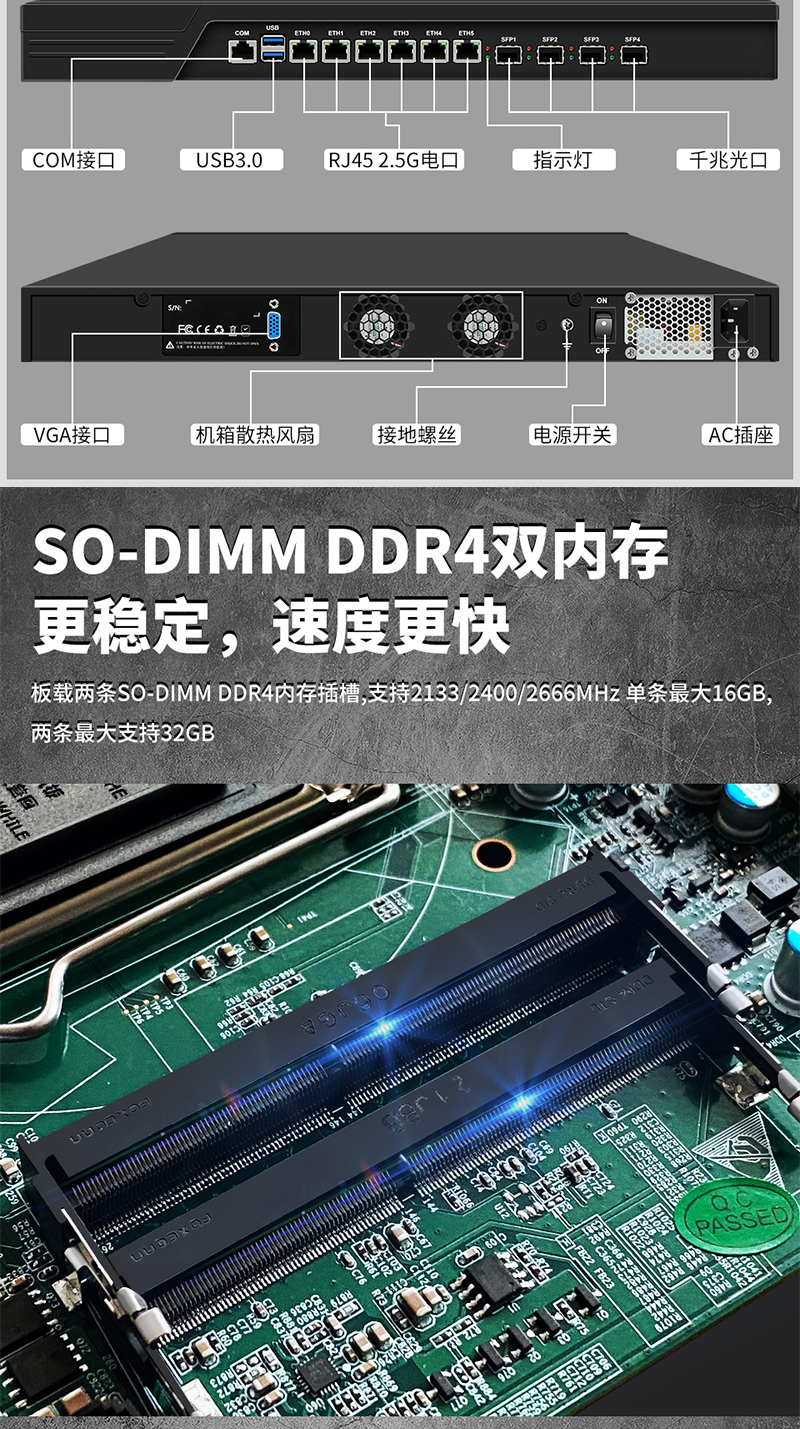

| Memory | 2*SO-DIMM DDR4 2133/2400/2666MHz MAX 32GB |
| LAN IC | Intel®Ethernet Controller i211-AT |
| LAN SFP | |Intel®Ethernet Co ntroller I350-AM4 |
| LAN Speed | 10/100/1000Mbps 1GB adapting |

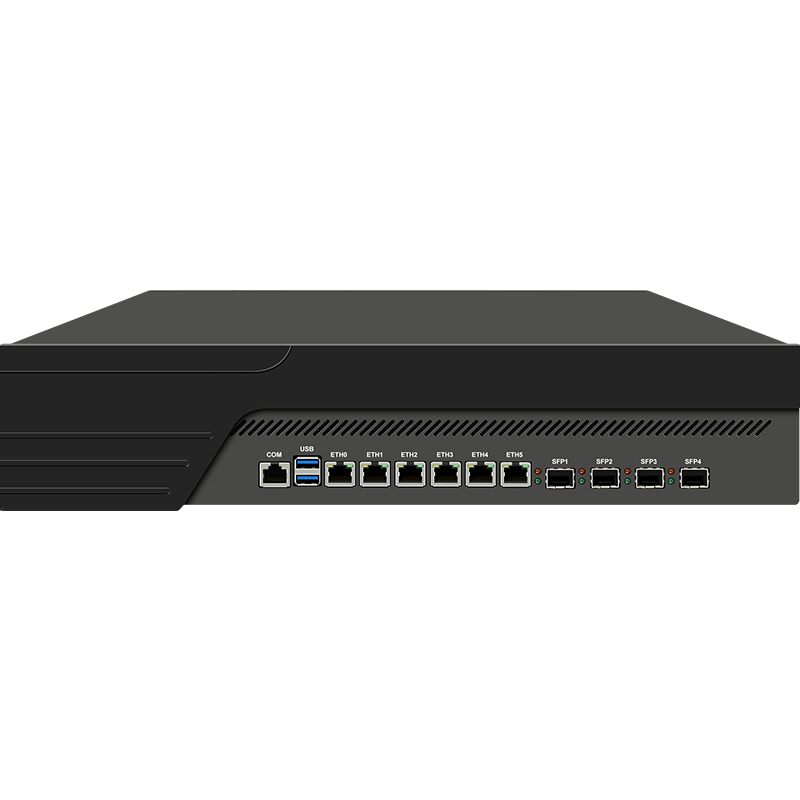

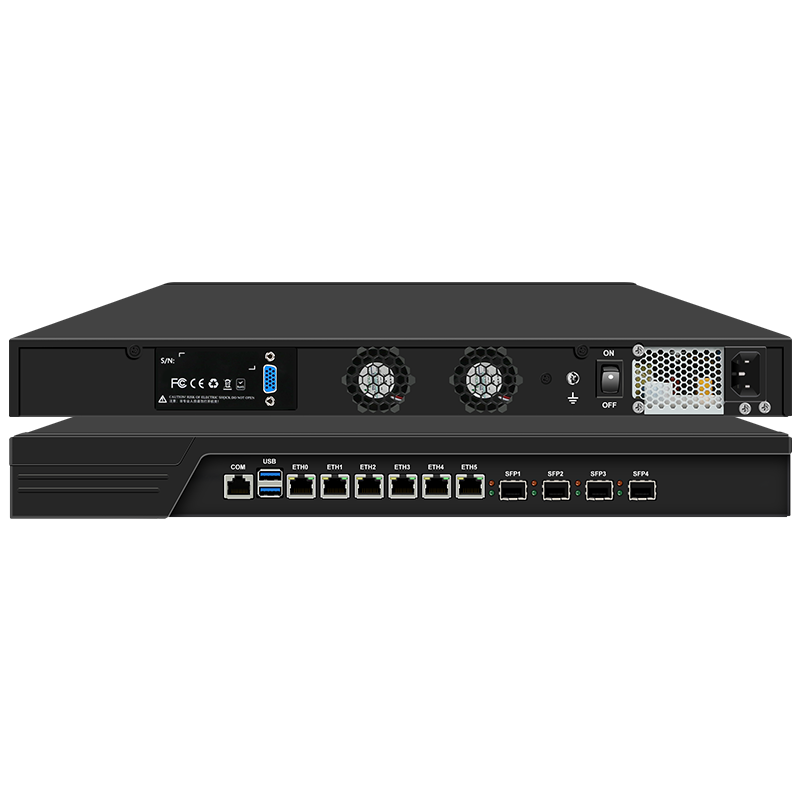

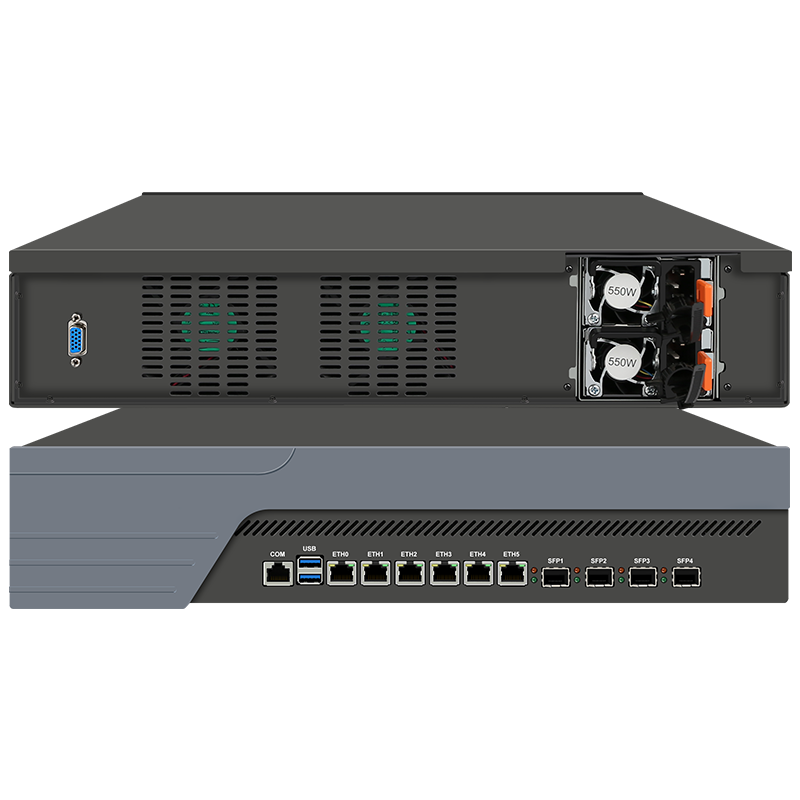

| LAN Interface | 6*RJ45+4*SFP |
| mSATA/SATA | 1*mSATA &2*7pin SATAll 6Gbps&1*CF |
| Header/Pin | 1*VGA 2*15pin max to 1920*1080@60Hz |
| UEFI | |AM| UEFI BIOS |
| Speed | 2*USB3.0 |
| Header/Pin | 1*USB2.0(Onboard) |
| Voltage | 100-240V~50/60Hz |
| ATX | 1*24pin ATX,1*4pin ATX power in |
| GPIO | 8*programmable GPlo |
| Watchdog | 256 Levels,0-255 Seconds |
| Bypass | Support 2*Gen3 Lan Bypass(To be customized) |
| COM | 1*RJ45 Console |
| TPM | N/A |
| 4G | 1*MINIPCle(USB-Signal,4G) |
| WiFi | 1*MINIPCle (USB-Signal, WIFI/Bluetooth) |
| Other | |NetWork WakeUp/PXE |

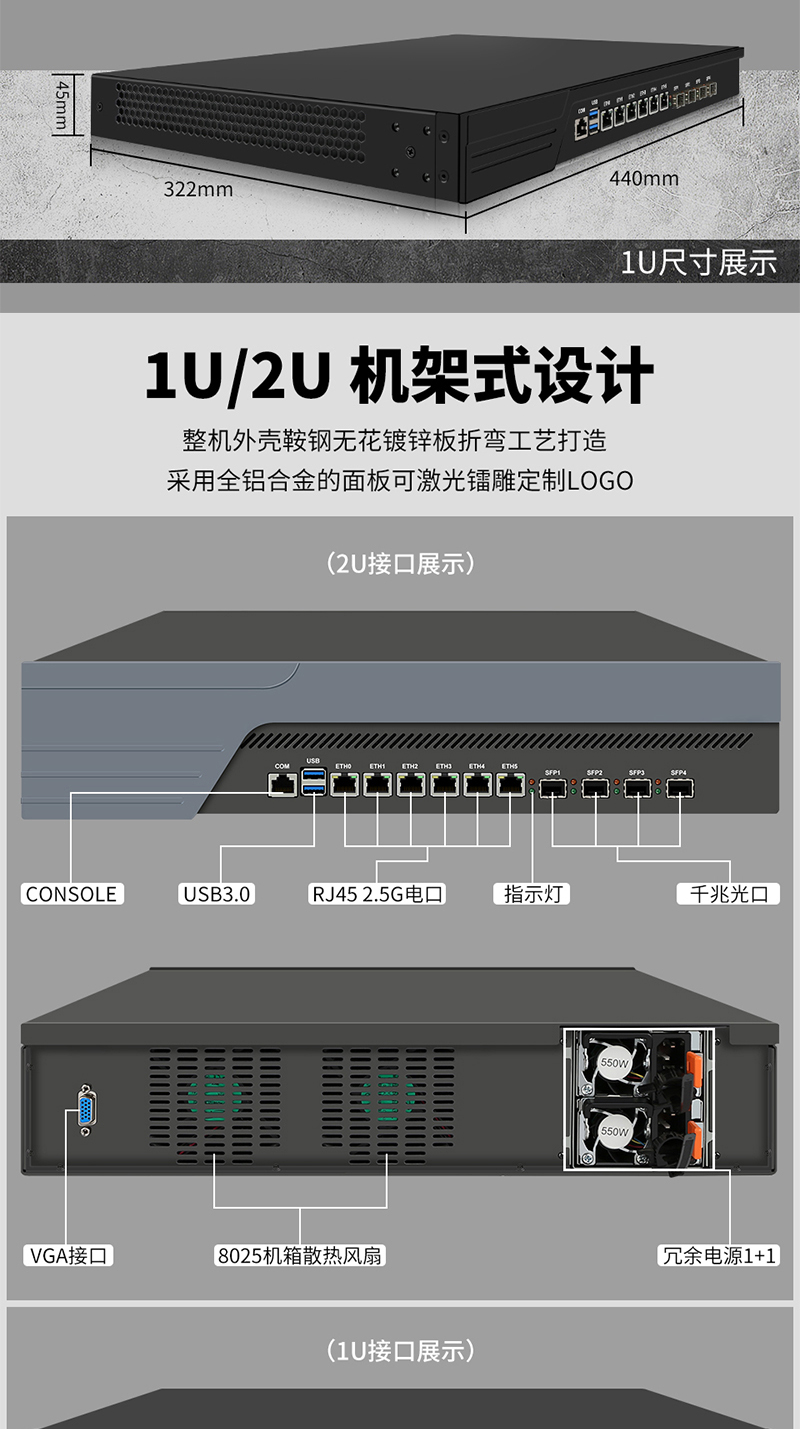

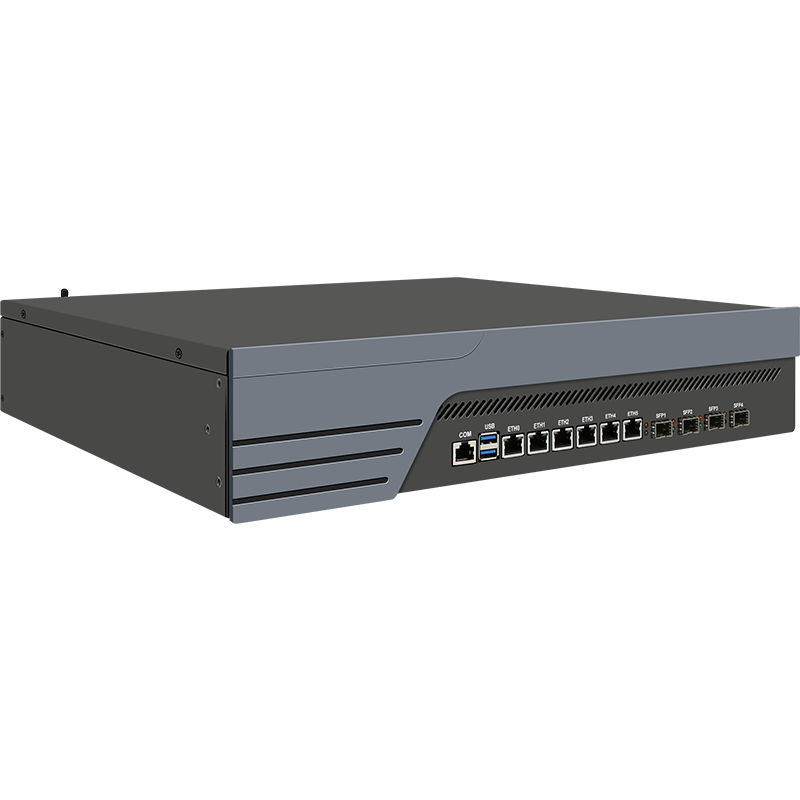

| Spec | 1U(440*322*45mm)&2U(435*405*90mm) |
| Temperature | |0℃~60℃,Storage:-15℃~75℃ |
| Humidity | 10%~90%, Storage: 5%~95%, non-condensng |
| OS | Windows 10,Windows 11,Linux |
